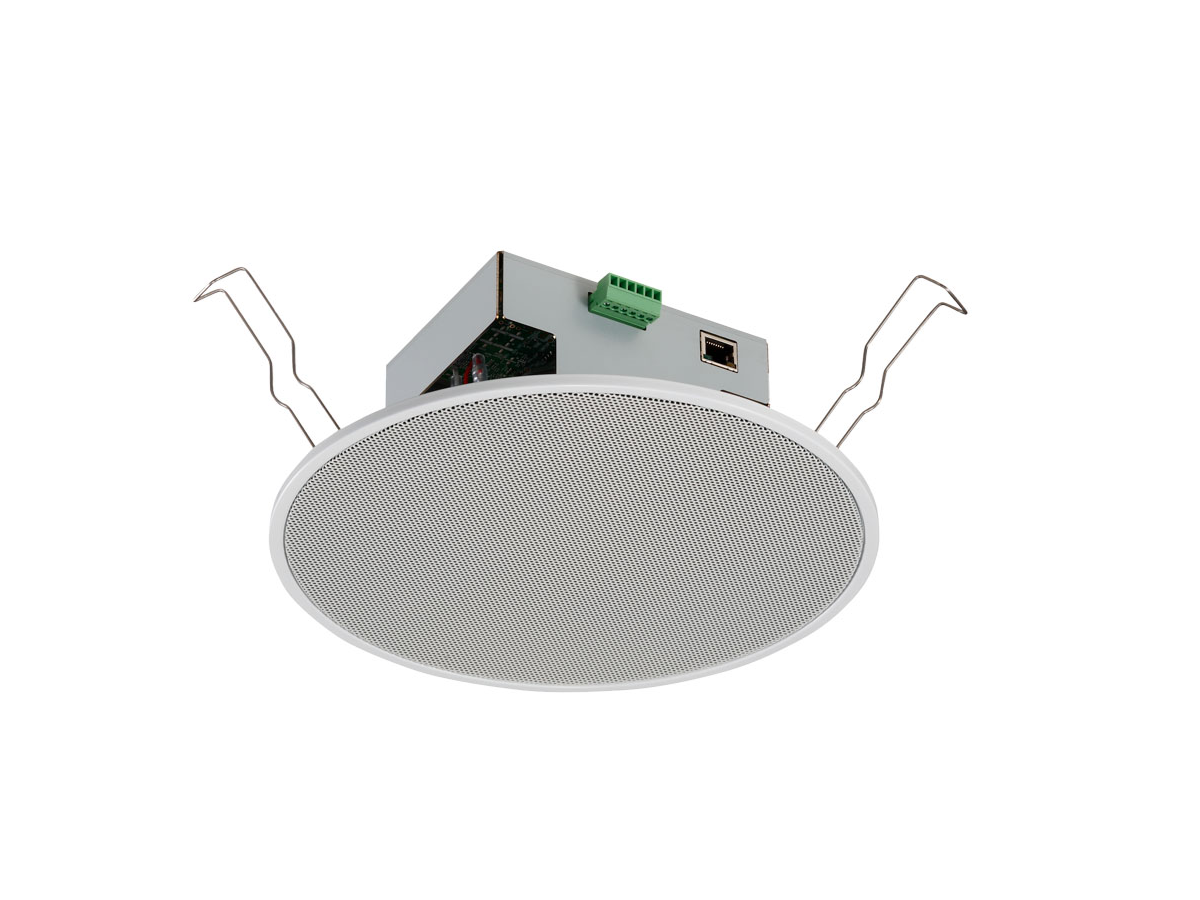

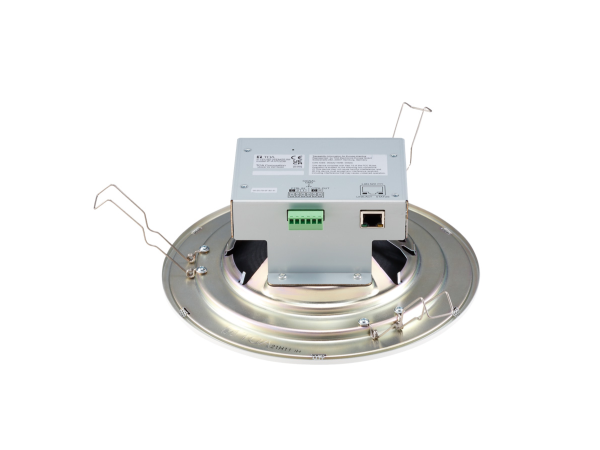

TOA IP-A1PC238 IP Ceiling Speaker 8W
คุณสมบัติเด่น
- ลำโพงติดเพดาน แบบ IP ขนาด 6 นิ้ว แรงขับ 8 วัตต์
- สามารถปรับระดับเสียงผ่าน Remote API ตามสภาพแวดล้อมในการฟัง
- มีหน่วยความจำสามารถบันทึกเสียงล่วงหน้าได้ 20 เสียง
- สามารถควบคุมการทำงานผ่าน Web Browser
| Power Source | PoE (IEEE802.3af Class 3) |
|---|---|
| Power Consumption | 12.95 W (rated output) 5 W (IEC62368-1) |
| Amplifier Rated Output | 8 W |
| Sensitivity | 94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise) |
| Max. Sound Pressure Level | 103 dB (8 W, 1 m) |
| Frequency Response | 60 Hz - 20 kHz (peak -20 dB) |
| Audio Codec | PCMU (G.711u), PCMA (G.711a), G.722 |
| Broadcasting Mode | SIP Broadcasting Mode: PCMU/PCMA/G.722, P2P/SIP Server Connection Multicast Broadcasting Mode: PCMU/PCMA/G.722 Auto codec recognition, 20 ports VMS Broadcasting Mode: ONVIF Audio Backchannel, PCMU Internal Message Broadcasting Mode Note: Each broadcast model can be assigned an order of priority using the Priority Setting function. |
| Internal Messages | Max. 20 messages (Max. recording capacity: 80 MB) Supported file formats: WAV file: 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo MP3 file: 32/44.1/48 kHz sampling frequency, 64-320 kbps, CBR/VBR, monaural/stereo Repeat playback: Playcount (1-10 times), Duration (5-3600 sec) or Timer (from Start time to End time) Interval time: 0-99 sec, Delay time: 0-99 sec Trigger: Contol Input or Remote API (HTTP) |
| Network I/F | 100BASE-TX, Auto MDI/MDI-X, RJ-45 connector |
| Network Protocol | TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261) |
| Control Input | 2 channels, no-voltage make contact inputs, open voltage: 5 V DC, short-circuit current: 2 mA or less, removable terminal block (6 pins) |
| Control Output | 1 channel, open collector output, withstand voltage 30 V DC, control current: 10 mA or less, removable terminal block (6 pins) |
| Indicator | LINK / ACT (green), STATUS (orange) |
| Clock Accuracy | ±13 seconds per month |
| Time Adjustment | Manual time setting, Time adjustment by NTP server |
| Power Outage Protection Period | 24 hours (RTC time retention, at 40 °C) |
| Dimensions for Fixing Hole | Mounting hole: Ø200 ±2 mm Ceiling thickness: 5 - 25 mm |
| Speaker Mounting Method | Spring Clamp |
| Operating Temperature | 0 °C to +50 °C |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Frame: Steel plate, white (RAL 9016 equivalent), paint Grill: Steel net, white (RAL 9016 equivalent), paint |
| Dimensions | Ø230 x 89 (D) mm |
| Weight | 880 g |
| Accessory | Pattern paper x 1, Removable terminal plug (6 pins, preinstalled on the unit) x 1 |
Note: Please do not install the product near heat insulation material, or cover the product with heat insulation or acoustic absorbing materials to prevent fire risk. Please do not install the product in damp or wet locations or areas with high humidity (condensing) as it may cause damage to the product.
# ONVIF is a registered trademark of ONVIF Inc.
Computer Requirements
| Display | 1366 x 768 resolution or higher |
|---|---|
| OS | Windows 10 Pro (64-bit edition) Windows 10 Home (64-bit edition) Windows 11 Pro Windows 11 Home |
| Required Web Browser | Google Chrome Microsoft Edge |
ยี่ห้อ : TOA
รุ่น : IP-A1PC238
รับประกัน : 1 ปี
ราคาพิเศษ / ขอใบเสนอราคา :contact@anysound.co
Line : @anysound, โทร 096-786-2526
คำถามที่พบบ่อยเกี่ยวกับ TOA IP-A1PC238 IP Ceiling Speaker 8W
