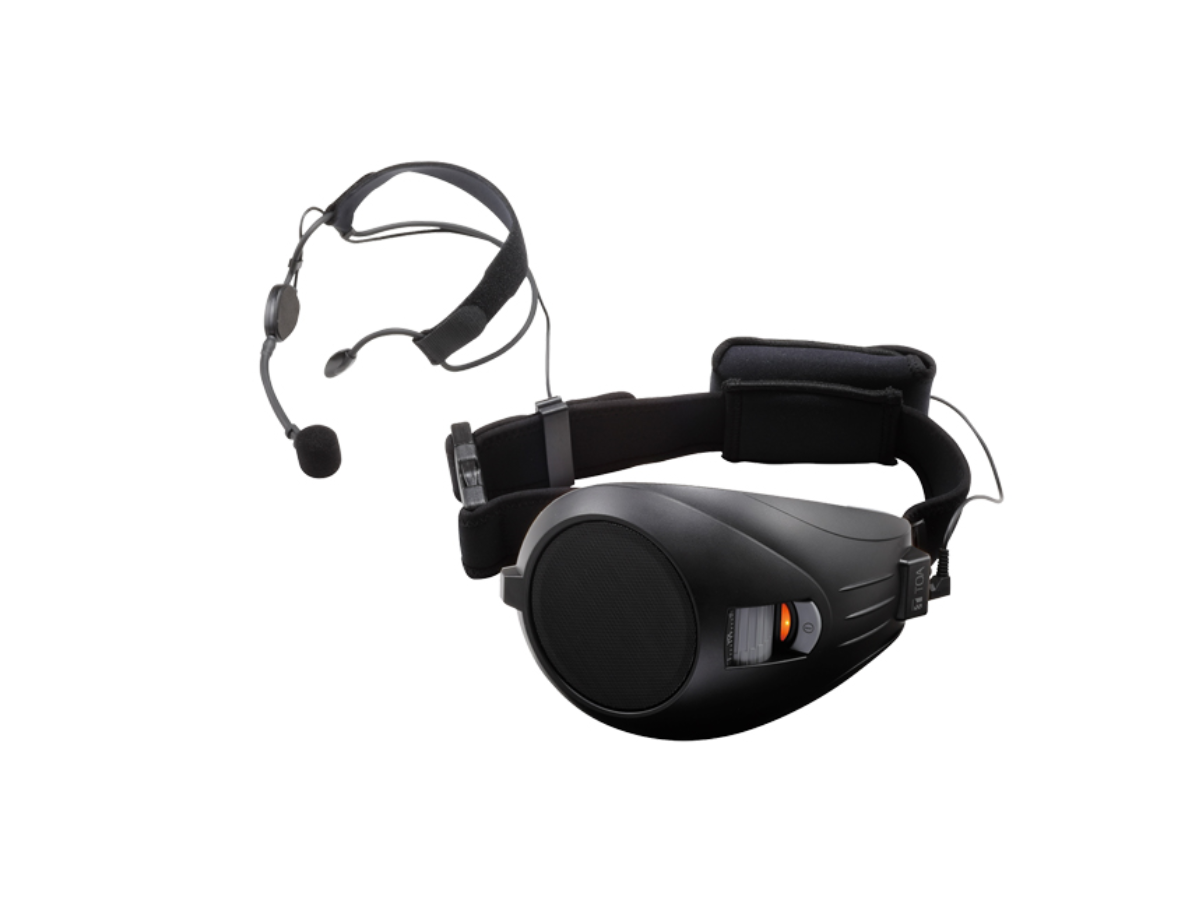

TOA ER-1000A-BK Personal PA System 6W
Download
TOA ER-1000A-BK Manual.pdf
TOA ER-1000A-BK Brochure.pdf
Powered by Froala Editor
| Power Source | Alkaline battery (LR6): 6 pieces (9 V DC) or 4 pieces(*1) (6 V DC) Rechargeable nickel metal hydride (Ni-MH) battery (HR15/51): 6 pieces (7.2 V DC) or 4 pieces(*1) (4.8 V DC) |
|---|---|
| Output | 6 W (rated) and 10 W (max) when 6 AA batteries (9 V DC) are used. 3 W (rated) and 4 W (max) when 4 AA batteries(*1) (6 V DC) are used. |
| Battery Life | Voice operation (*3): Approx. 8 hours (when 6 or 4(*1) alkaline batteries are used) Approx. 7 hours (when 6 or 4(*1) Ni-MH batteries are used) AUX stereo input operation (music reproduction)(*4): Approx. 9 hours (when 6 or 4(*1) alkaline batteries are used) Approx. 9 hours (when 6 or 4(*1) Ni-MH batteries are used) |
| Audible Range(*2) | Voice operation: Approx. 100 m (when 6 alkaline batteries or Ni-MH batteries are used) Approx. 80 m (when 4(*1) alkaline batteries or Ni-MH batteries are used) |
| Frequency Response | 300 Hz - 14 kHz (deviation: -26 dB) |
| Headset Microphone | Ear-on type, electret condenser microphone, sensitivity: -47 dB (0 dB =1 V/1 Pa, 1 kHz) |
| Input | MIC: -30 dB(*5), 3 kΩ, φ3.5 monaural mini-jack, phantom power supply AUX(*6): -10 dB(*5), 2 kΩ, φ3.5 (0.14") stereo mini-jack (supporting monaural applications(*7)) |
| Belt Length | 55 - 120 cm (*8) |
| Operating Temperature | 0 ℃ to +40 ℃ |
| Finish | Front case: ABS resin, black Rear case: ABS resin, gray Grille: Surface-treated steel plate, black, paint Belt: Elastic rubber, black |
| Dimensions | 133 (W) × 96 (H) × 222 (D) mm (belt excluded) |
| Weight | Main PA unit (belt included, batteries excluded): 480 g Headset microphone: 50 g |
| Accessory | Headset microphone (with headband and wind screen) …1, Belt (attached to the main PA unit) …1, Battery spacer …2 |
Powered by Froala Editor
ยี่ห้อ : TOA
รุ่น : ER-1000A-BK
รับประกัน : 1 ปี
ราคาพิเศษ / ขอใบเสนอราคา : anysound.co@gmail.com, Line : @anysound, โทร 096-786-2526
