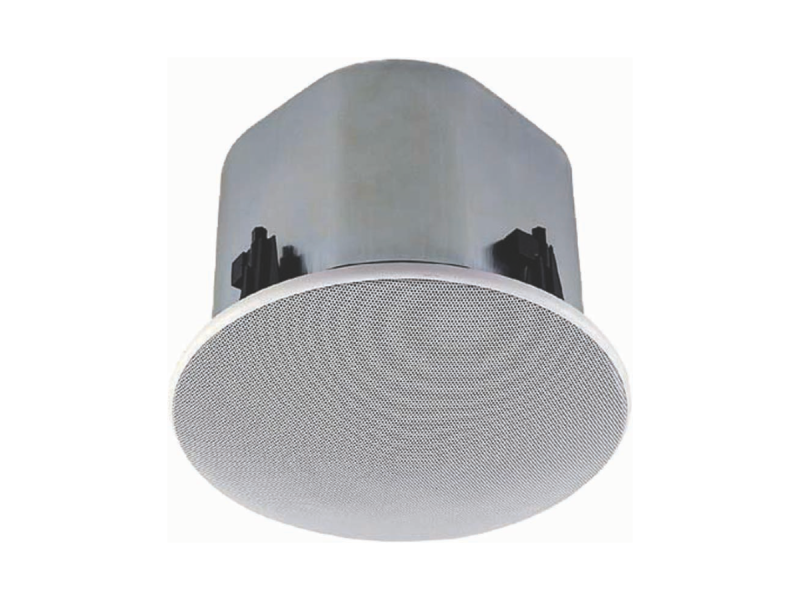

TOA F-2852C Wide-Dispersion Ceiling Speake(16cm)
| Enclosure | Bass reflex type |
|---|---|
| Rated Input | 60 W (High Impedance) |
| Power Handling Capacity | Continuous pink noise: 90 W (8 Ω), 60 W (16 Ω) Continuous program: 180 W (8 Ω), 120 W (16 Ω) |
| Impedance | 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W) 70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W) 25 V line: 83 Ω (7.5 W), 170 Ω (3.7 W), 330 Ω (1.9 W), 670 Ω (0.9 W), 3.3 kΩ (0.2 W) 8 Ω |
| Sound Pressure Level | 91 dB (1 W, 1 m) |
| Frequency Response | 60 Hz - 20 kHz (-10 dB), 45 Hz - 20 kHz (-20 dB) at installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling.) |
| Speaker Component | High frequency: Dome-type, Low frequency: 16 cm cone-type |
| Mounting Hole | φ250 mm (Maximum ceiling thickness: 37 mm) |
| Input Terminal | Removable locking connector with screw-down terminals (2 input terminals and 2 bridge terminals) |
| Usable Cable | Solid copper wire: φ0.5 - φ1.6 mm (equivalent to AWG No. 24 - 14) Stranded copper wire: 0.2 - 2.5 m㎡ (equivalent to AWG No. 24 - 14) |
| Finish | Enclosure: Steel plate, plating Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint Punched net: Steel plate, white, paint |
| Dimensions | φ280 × 227 (D) mm |
| Weight | 5.1 kg (including mounting accessories) |
| Accessory | Panel ……1, Ceiling reinforcement ring ……1, Safety wire ……1, Paper pattern …1 |
| Option | Anchor hanging bracket: HY-AH1, Tile bar bridge: HY-TB1 |
ยี่ห้อ : TOA
รุ่น : F-2852C
รับประกัน : 1 ปี
ราคาพิเศษ / ขอใบเสนอราคา : anysound.co@gmail.com, Line : @anysound, โทร 096-786-2526
