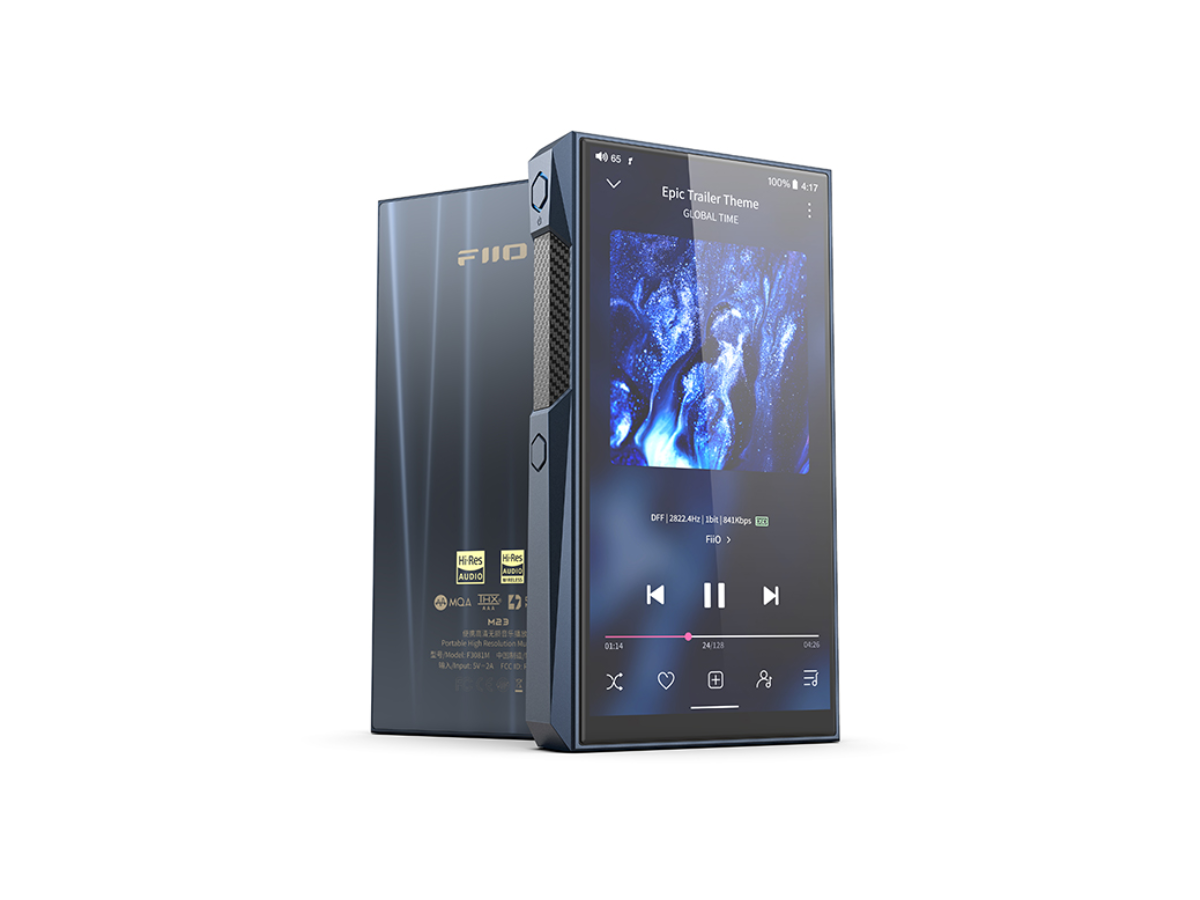

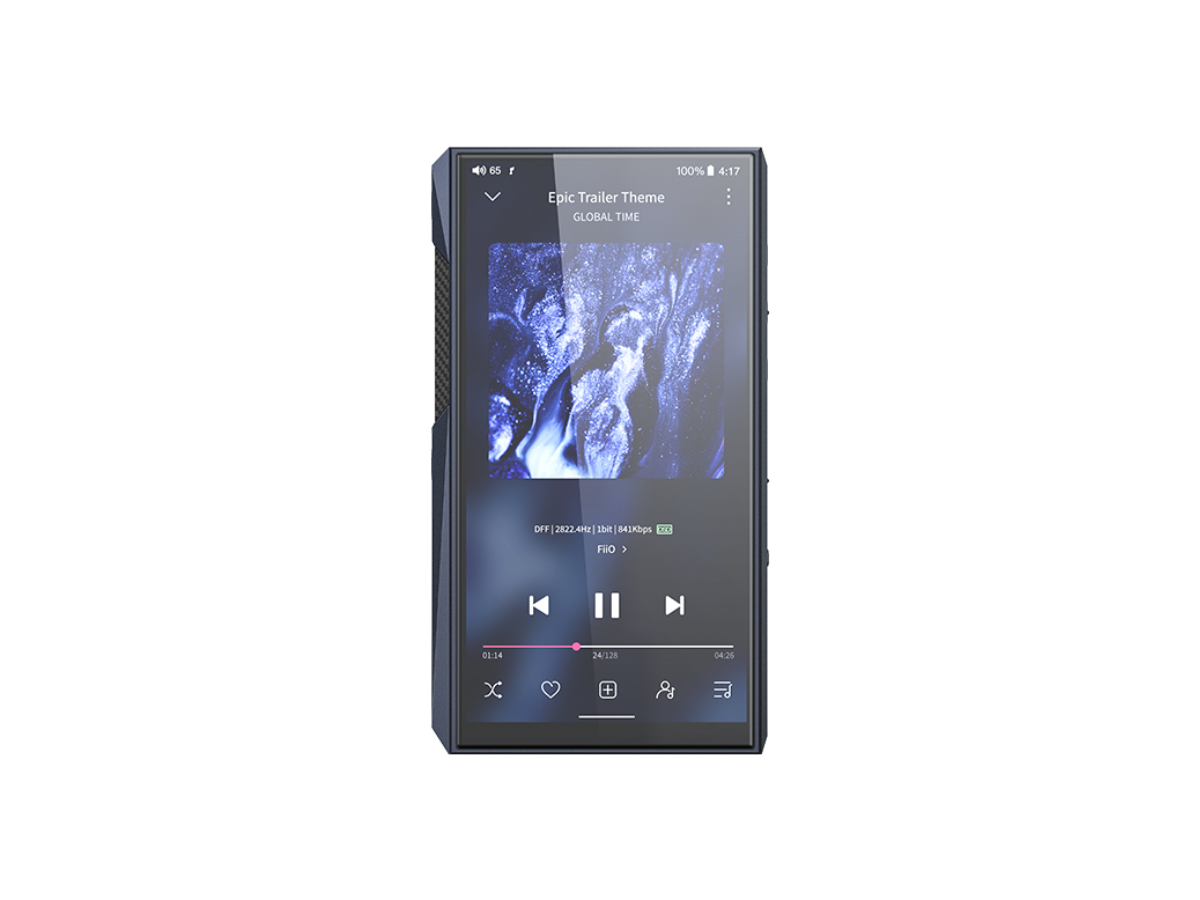

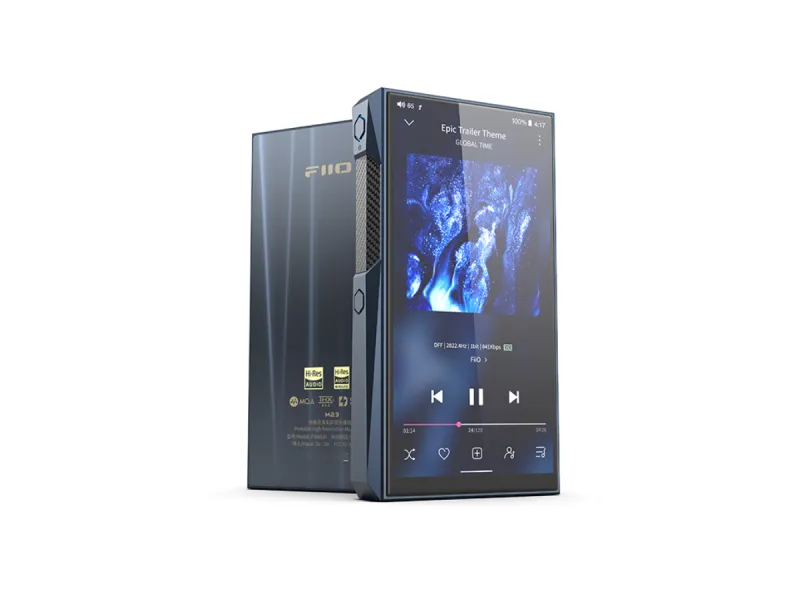

FiiO M23 DarkBlue [Aluminium] เครื่องเล่นเพลงดิจิทัลแบบพกพา (DAP) ระดับไฮเอนด์

BRAND: FiiO

FiiO M23 เครื่องเล่นเพลงดิจิทัลแบบพกพา (DAP) ระดับไฮเอนด์ ชิป DAC ระดับเรือธง หน้าจอสัมผัส 5.5 ระบบ Android

฿ 25,900 ✅ราคารวมภาษีมูลค่าเพิ่มแล้ว

ติดต่อเรา

Download

M23 Quick Start Guide.pdf

คุณสมบัติเด่น:

ชิป DAC ระดับเรือธง: AKM AK4191EQ + AK4499EX ถอดรหัสเสียงได้อย่างแม่นยำ
แอมป์ THX AAA-78: ขับเสียงได้ทรงพลัง รายละเอียดครบถ้วน
กำลังขับสูง: 1,000mW + 1,000mW ขับหูฟังได้หลากหลาย
รองรับ MQA: เพลิดเพลินกับเสียงคุณภาพสูงสุดจาก Master Quality Authenticated
ความจุแบตเตอรี่ 5500mAh: ใช้งานได้ ประมาณ 9 ชม.
Bluetooth 5.0: เชื่อมต่อไร้สาย รองรับ LDAC aptX HD
หน้าจอสัมผัส 5.5 นิ้ว: ใช้งานง่าย
Android 12: ติดตั้งแอปพลิเคชันได้หลากหลาย

General Specifications
Name/Model	M23	Hardware solution	SoC: Snapdragon 660, DAC: AK4191EQ+AK4499EX, Amp: 4-way THX AAA-78+, charging: AW32271
Working mode	Android/Pure music/USB DAC/Bluetooth Receiving/AirPlay/Roon Ready	Color	Deep blue/Stainless steel
Dimensions	About 75.7x136.5x18.1mm	Dimensions	About 299g (Deep blue)/About 392.3g (Stainless steel)
Display	5.5-inch bezel-less screen (1440*720 resolution ratio)	Volume control way	Slide or button control
RAM	4GB	Internal storage/available space (ROM)	64GB/about 46GB
Memory card	Single microSD card expansion, up to 2TB in theory)	Gain mode	Super High (for fast charge)/High/Medium/Low Gain modes
Channel balance	L20~R20 (0.5dB per level)	Adaptive impedance	PO: 8~150Ω BAL: 8~350Ω
Buttons and Ports
Buttons	Power button1; Multifunction button1;volume touch panel1; Play/Pause1; Previous track1; Next track1	Toggle switch	HOLD1; D.MODE1
Headphone out	3.5 mm	Line output	3.5 mm (shared PO)
BAL headphone out	4.4 mm	BAL line output	4.4 mm (shared BAL)
COAX headphone out	3.5 mm (shared PO, supports up to 384kHz-24bit/DSD128)	USB	Type-C USB3.01 (charging/data transmission)+Type-C POWER IN1 (Charging/Independent power supply)
Characteristics
WiFi	2.4GHz/5GHz, supports multimedia service (DLNA), AirPlay, WiFi song transfer, Roon Ready, etc.	Bluetooth transmission (5.0)	SBC/AAC/aptX/aptX HD/LDAC/LHDC
Bluetooth reception (5.0)	SBC/AAC/LDAC	FIIO Link	Android supports WiFi and Bluetooth control, iOS supports WiFi control
MQA	Supports MQA full decoding	All to DSD	Supported
Double tap to wake up	Supported	In-vehicle mode	Auto on/off following the USB of the vehicle
Max supported sampling rate	Local decoding: up to 384kHz-32bit/DSD256	Power off timers	Supports Sleep/Idle power off
	USB DAC: up to 384kHz-32bit/DSD256	EQ adjustment	10-band dynamic EQ adjustment (±12dB), built in 8 types of preset EQ, self-define EQ, supports PEQ
	USB Audio: 768kHz-32bit/DSD512 (supports DoP/D2P/Native)	System navigation mode	Supports gesture navigation, 2-button navigation and 3-button navigation
Firmware upgrade	Supports upgrade from local storage/memory card/OTA
Power Supply Parameters
Power Supply	Supports QC3.0, QC4.0, PD2.0, PD3.0 PPS fast charge	Battery capacity	5500mAh
Charging time	About 2.5 hours (PD3.0 fast charge mode)	Standby time	＞1000h
Battery life and test conditions
3.5mm headphone out: 10.5 hours
Volume level	52	Gain level	High gain
Display status	OFF	Playing track and format	MP3 44.1kHz/16bit
EQ	OFF	Load	32Ω
4.4mm BAL headphone out: 9 hours
Volume level	41	Gain level	High gain
Display status	OFF	Playing track and format	MP3 44.1kHz/16bit
EQ	OFF	Load	32Ω
Audio Parameters
Parts of performance and parameters of PO (Super High Gain mode)
Output power	L+R≥480mW+480mW (16Ω , THD+N＜1%)	Output impedance	<1Ω
	L+R≥440mW+440mW (32Ω, THD+N＜1%)	THD+N & Noise	≤0.00038% (1kHz/-6dB@32Ω)
	L+R≥60mW+60mW (300Ω, THD+N＜1%)	SNR	≥125dB (A-weighted)
Crosstalk	≥72dB (1kHz@32Ω)	Noise floor	≤1.9μV (A-weighted)
Frequency response	20Hz~20kHz: damping<0.1dB	Peak output voltage	12 Vp-p
Frequency response	20Hz~80kHz: damping<1.1dB
Parts of performance and parameters of PO (High gain)
Output power	L+R≥235mW+235mW (16Ω , THD+N＜1%)	Output impedance	<1Ω
	L+R≥125mW+125mW (32Ω, THD+N＜1%)	THD+N & Noise	≤0.00046% (1kHz/-4.1dB@32Ω)
	L+R≥15mW+15mW (300Ω, THD+N＜1%)	SNR	≥120dB (A-weighted)
Crosstalk	≥71dB (1kHz@32Ω)	Noise floor	≤1.9μV (A-weighted)
Frequency response	20Hz~20kHz: damping<0.1dB	Peak output voltage	6 Vp-p
Frequency response	20Hz~80kHz: damping<1.1dB
Parts of performance and parameters of line-out
THD+N & Noise	≤0.00043% (1kHz/0dB@10kΩ)	SNR	≥126dB (A-weighted)
Crosstalk	≥110dB (1kHz@10kΩ)	Noise floor	≤1.1μV (A-weighted)
Frequency response	20Hz~20kHz: damping<0.1dB	Line output level	2.0Vrms
Frequency response	20Hz~80kHz: damping<1.1dB
Parts of performance and parameters of BAL headphone out (Super High Gain mode)
Output power	L+R≥730mW+730mW (16Ω , THD+N＜1%)	Output impedance	<2Ω
	L+R≥1000mW+1000mW (32Ω, THD+N＜1%)	THD+N & Noise	≤0.00038% (1kHz/-12dB@32Ω)
	L+R≥240mW+240mW (300Ω, THD+N＜1%)	SNR	≥125dB (A-weighted)
Crosstalk	≥117dB (1kHz@32Ω)	Noise floor	≤3.1μV (A-weighted)
Frequency response	20Hz~20kHz: damping<0.1dB	Peak output voltage	23.5 Vp-p
Frequency response	20Hz~80kHz: damping<1.1dB
Parts of performance and parameters of BAL headphone out (High Gain mode)
Output power	L+R≥630mW+630mW (16Ω , THD+N＜1%)	Output impedance	<2Ω
	L+R≥475mW+475mW (32Ω, THD+N＜1%)	THD+N & Noise	≤0.00039% (1kHz/-5.7dB@32Ω)
	L+R≥55mW+55mW (300Ω, THD+N＜1%)	SNR	≥122dB (A-weighted)
Crosstalk	≥115dB (1kHz@32Ω)	Noise floor	≤3.1μV (A-weighted)
Frequency response	20Hz~20kHz: damping<0.1dB	Peak output voltage	11 Vp-p
Frequency response	20Hz~80kHz: damping<1.1dB
Parts of performance and parameters of BAL line-out
THD+N & Noise	≤0.00033% (1kHz/-10.3dB@10kΩ)	SNR	≥129dB (A-weighted)
Crosstalk	≥106dB (1kHz@10kΩ)	Noise floor	≤1.4μV (A-weighted)
Frequency response	20Hz~20kHz: damping<0.1dB	Line output level	4.0Vrms
Frequency response	20Hz~80kHz: damping<1.1dB
